Description:
Industrial Fixture Tools Stencil Cleaning Machine 200-600l / Min
Product Feature:

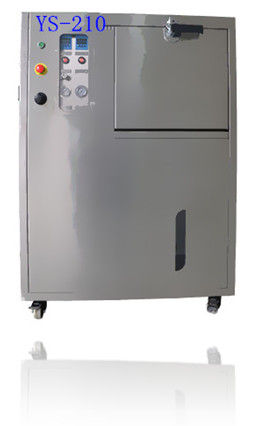

1. YS-210 Fixture cleaning machine, high quality Industrial fixture cleaner,high quality tools cleaning machine
2. SUS 304 machine structure, resist Acid and Alkali corrosion, 10 years lifespan.
3. Totally Driven by compressed air , no electric power, totally no fire or explosion risk caused by electrical spark .
4. One button easy operation, clean and dry complete automatically
5. Push-pull cleaning basket, easy to put and take out cleaning parts, no need special jigs.
6. Equipped auto liquid fill in and drain function
7. Liquid recycle use to ensure low consumption
8. Inner-lock safety door, once open, machine stopped immediately to ensure operator safety
9. 3-level precise filtering system to make liquid clean by recycled use
10. Super well-known Pneumatic parts from all over the word ensure stable use of the machine
11. Modular design ensure easy maintenance

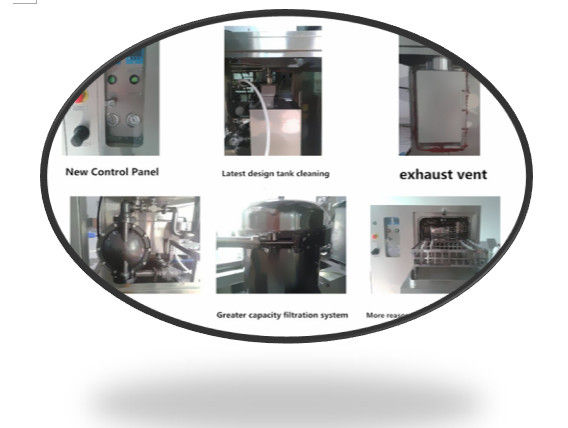

Machine construction Description chart:
Product Details:
Place of Origin:
|
china
|
Brand Name:
|
YUSH
|
Certification:
|
CE
|
Model Number:
|
YS-210
|
Minimum Order Quantity:
|
1set
|
Packaging Details:
|
wooden packaging- L15500 x W1100 x H2150(mm)
|
Payment Terms:
|
T/T, L/C
|
Supply Ability:
|
100 month
|
Machine Specs:
ItemModel Number
|
YS-210
|
Max stencil size
|
L420 x W420 x H200 (mm)
|
Liquid tank
|
Max: 50L; Min20L
|
Clean time
|
4~6min
|
Dry time
|
4~10min
|
Air supply
|
0.5~0.7Mpa
|
Air consumption
|
200~600L/min
|
Clean type
|
360°rotate jet clean + compressed air blow dry
|
Filter system
|
20um/5um/1um(3 level)
|
Machine size
|
L1060 x W800 x H1600(mm)
|
Machine weight
|
205KG
|
