Description:

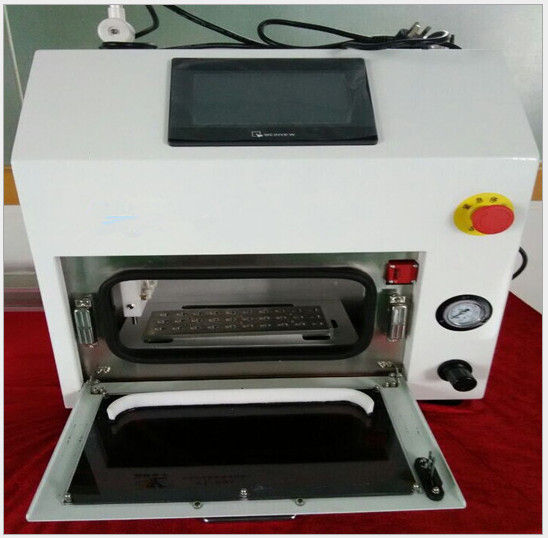

Easy Operation White Automatic Pcb Cleaning Machine Clean The Nozzle
Product Feature:
1. cleaning result will not affect by the smaller and smaller nozzle.
2. Thoroughly clean 99% dirt on nozzle, extend the lifespan of nozzle.
3. Protect the coating surface of nozzle and its reflection panel.
4. No solvent, only use environmentally friendly DI water or purified water .
5. Easy operation.
6. Applicable to all kinds of Mounter nozzles.
7. Clean 12 nozzles in one time, quicker and more efficient
8. Replace traditional manual clean, avoid troubles caused by ultrasonic cleaner, reduce rejection rate.
9. To clean the dirt completely which ultrasonic cleaner can not deal with.
Machine SpecS:
Item Model Number
|
YS-12
|
Air supply
|
0.5~0.7Mpa
|
Power supply
|
AC220V,1A,250W
|
Liquid
|
DI water or purified water
|
Jet pressure
|
≤0.55Mpa
|
Liquid consumption
|
≤150cc/hour
|
Nozzle range
|
Min01005~Max inner diameter ¢2.0mm
|
Jig spec
|
12 holes
|
Machine size
|
L665*W555*H475(mm)
|
Machine weight
|
70kg
|
