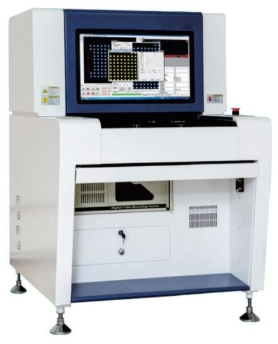

High End Off Line AOI Machine For SMT Line Production

型号: YSL-Z5P

类别: AOI光学检测设备

Share Facebook Twitter

BookmarkX

Facebook Twitter Reddit Delicious StumbleUpon Digg

详细介绍:

Highlight:

SMT Line AOI Machine

Off Line AOI Machine

High End AOI Machine

Machine Dimensons(LWH）	86810551365mm	WEIGHT:	310kg
Power Suppl:	AC220V±10%,single Phase 50/60HZ,power Consumption 600W	Working Enyironment:	Temperature10-40℃,humidity 30-80%RH

High End Off Line AOI Machine For SMT Line Production

PRODUCT FEATURES:

1.Multi-algorithms and techniques

2.Simultaneous inspectionfor multi-boards and inspection shift of 2 sides of board (components top and bottom)improves the inspection efficiency

3.Smart camera barcodes identify system.(Can identify 1D&2Dbarcode)

4.Multiple machine monitoring system,canknow well of all the conditions of production

5.Remote programming and debugging make the software is easier and convent

TECHNICAL PARAMETER
CATEGORY	ITEM		SPECIFICATION
Recognition System	Inspection		Usingmultiple algorithms syntheticaly such as WIDM.Color Image contrast technology.Color vector analysis,similarity,two- value handling technology DCR Contour analysis,Solder ball nspection and Wave DIP analysis technology and s on
	Camera		20μm(optical 15μm,10μm) 5MP Color camera:20μm(15μm,10μm for option)
	Lamp-house		3Rngs RGB LED lamp-house,withspecial coaxial optical for option.
	Image Processing Speed	0201 Chip	≤10ms
		Per-image Time	≤170ms
		Paste Printig Defects	Misaligned,overflow,insufficient,pasting open,stain
		Compones Defects	Missing,misaligned,skewed,tombstone,billboard,overturn,reversed polarity,wrong.damaged
	Inspection ltems	SolderDefects	Overflow,insufficient,short solder,stain,false soder
		Wave Soldering Inspect	Overflow,insuffidient,short,Excess Solder,solder void
	Anti Static Measures		Antistatic electric outlet,anti-static wreath
MechanismSystem	PCB Size		25×25mm~480×330mm, can make bigger size accordingto clients demands
	PCB Thickness		0.5mm-5.0mm
	PCB Warp Toleranoe		±2mm(There is a clamp to help correct the deformation)
	Component Clearance		TOP<28/option:55mm;BOT<75mm
	MinimumSpace Parts		20um:0201Chip,0.4PitchlC, 15um:01005Chip,0.3Pitch IC
	X,YPlatform	Driber	AC servo system
		Orlentation	<10μm
		Moving Speed	700 mm/s
Soft System	Operation System		Microsoft Windows 10
	Controlling&Recognizing	Characteristics	Automatic call the program &identify the top or bottom side of the PCB;Support no PCB programming;Intelligent communication,dockingwith MESIntelligent dataalert function;Support the centralcentralzed database model
		Operation	Graphical programming.easyto operate;Multiple algorithms can be free combination;Support ofline programming & debugging:Automatically generate SPC reports.
	Mark	Mark Numbers	3marks can be chosen
		Recognising Speed	0.5s/pcs
control system	Computer		ndustrial Computer l3 CPU,I3 CPU,Memory16G,Hard disk 2T
	pispla		22 inch TFT
Others	Machine Dimensons(L×WxH)		868×1055×1365mm
	WEIGHT		~310kg
	Power Supply		AC220V±10%,single phase 50/60HZ,power consumption 600W
	Working Enyironment		Temperature10-40℃,humidity 30-80%RH
