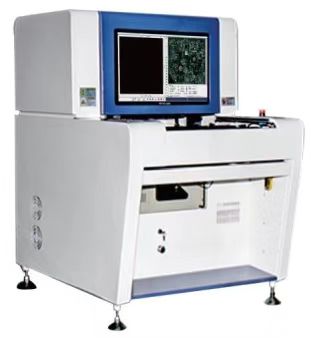

ECHNICAL PARAMETER
|
|
CATEGORY
|
ITEM
|
SPECIFICATION
|
|
Recognition System
|
Inspection
|
Using mutiple algorithmssynthetically such asWDM,Color Image contrast technoloqy,Color extracting technoloqy similarity two-value handling technology,OCR/OCVand so on
|
|
Camera
|
Color camera:20μm(15μm for Optical)
|
|
Lamp-house
|
Ring RGB LED flash lamp-house
|
|
lmage Processing
Speed
|
0201 Chip
|
<10ms
|
|
Per-Image Time
|
<170ms
|
|
Inspection Items
|
Paste Printig Defects
|
Msaligned,overflow,insuffcient,pasting open,stain
|
|
Componet Defects
|
Missing,misaligned,skewed,tombstone,billboard,overturned,reversed polarity wrong,damaged
|
|
SolderDefects
|
Overflow,insufficient,short solder,stain
|
|
Anti Static Measures
|
Anti-static electric outlet,anti-static wreath
|
|
Mechanism System
|
PCB Size
|
25*25mm - 480×330mm,Can customized size
|
|
pCBThicknes
|
0.5mm-5.0mm
|
|
PCB Warp Tolerance
|
±2mm
|
|
Component Clearance
|
TOP<28mm,BOT<75mm
|
|
Minimum Space Parts
|
0201 chip(15μm)
|
|
X,YPlatform
|
Driver
|
AC servosystem
|
|
Accurate positioning
|
<10μm
|
|
Moving Speed
|
700mm/s
|
|
Soft System
|
Operation System
|
Microsoft Windows 7
|
|
|
|
Controlling Recognizing
|
Characteristics
|
WDM,study OKtemplate,automatically set template imaging,identify data and error numerical value
|
|
Operation
|
Graphic programming,take along with chip library and get aninspection fame accordingwithchip shape,aureate postion,micron aajust,and easyprogramming
|
|
Mark
|
MarkNumbers
|
0-2marks can be chosen
|
|
Recognizing Speed
|
0.5s/pCs
|
|
Controller
|
Computer
|
CPU:Intel dual-core,Memory:4G,Hard disk:1T
|
|
Display
|
222-inch TFT
|
|
Others
|
Machine Dimensions(L×WxH)
|
868×1033×1340mm
|
|
Weight
|
~310kg
|
|
PowerSupply
|
AC220V±10%,single phase 50/60HZ,power consumption 600W
|
|
Working Enyironment
|
Temperature10-40℃,humidity 30-80%RH
|
