High Quality Fully automatic labeling machine For SMT Produciton Line

Items

Parameter

Complete

machine

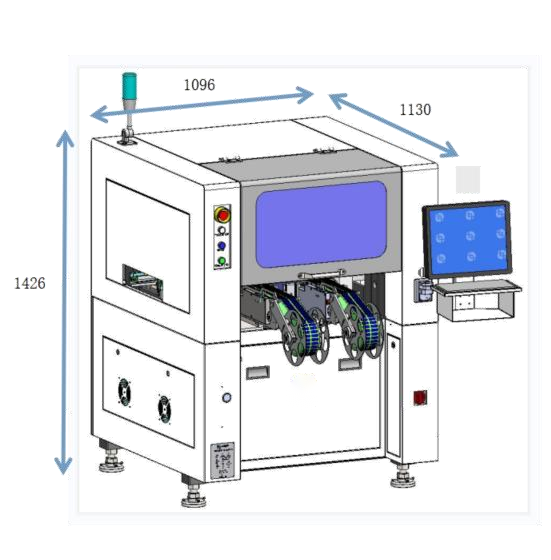

Dimension

About 1096 × 1130 × 1426mm

Weight

About 800Kg

Power Supply

AC220V ± 10% 50Hz

Power

1.0KW

Gas source

0.4-0.6MPa

Air Pressure

Less than 1L/min (air consumption of each vacuum generator 46L/min)

Mounting

Production

Max 2500pcs/h 或 1.2-2.5sec/pcs Note 1

Product/vehicle size

L50 ×W50-L340 ×W280mm

Product/vehicle thickness

1-6mm

Material frame size

L * W: 2 x 2-100 x 40 mm, Thickness: 0.05-0.3 mm (Special thickness can be customised, diameter over 30mm

needs to be customised.)

Material Specification

1-10pcs/line (roll)

Number of mounting heads

2 PCS

Label Feeder Capacity

2pcs 105mm Smart Feeder (customizable)

Entry direction

L-R 、R-L 、L-L 、R-R

Transfer rate

Max 600mm/sec

Transport Height

900 ±20mm

Mounting Angle

0-360 °

Mounting accuracy

±0.05mm(excluding material deviation)

Position Accuracy

±0.025mm

Repositioning Accuracy

±0.005mm

Others

Stripping method

Optical fiber detection + software control

Suction test

Vacuum detection 、drop mark detection

Product support mode

Magnetic thimble 、flexible side clamp

Track widening

automatic adjustment

Control Method

pc industrial computer

Machine connection

SMEMA port

Operating Environment

Windows

Division_Purview

coded lock

on-line mode

Reserved network interface

Human Machine Interface

LCD

Input Equipment

Keyboard 、mouse

Alarm method

Three-color light, buzzer, software warning popover
