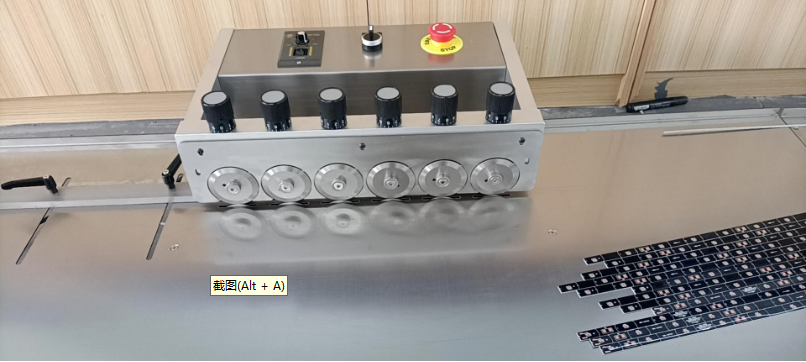

Lamp splitter Machine YSL-750

Features:

Continue cutting exactly. Tip beat no more than 0.02mm, to ensure perfect cutting quality.

4. Stainless steel platform with laser calibration positioning function (1.2m or 2.4m optional)

Application field

The YSL-750 is used in:
  750 plate machine adopts six groups of cutting tools to cut step by step, the shear stress is reduced to the minimum, and the deformation control device is configured, the edge of the segmented substrate is smooth, the surface is very flat, no twisting or warping, the ultra-thin aluminum substrate cutting about 0.6mm can still perfectly control its deformation in two wires, to meet the glass tube process on the deformation of the harsh requirements.
  Because of multiple cuts, the cutting process is very smooth, greatly improve the positioning ability of V-CUT slot, even if the V-CUT slot is very shallow circuit board, there will be no V-CUT slot from the guide knife jump out of the situation, avoid bad
a. Mainly used in electronic, electrical, lighting, medical, automobile new energy, automobile and other electronic technology industries;

Defective PCB board

Machine sub-board after PCB board

Equipment parameter
